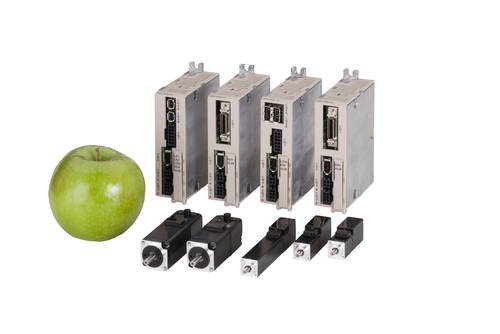

Ultra Small AC Servo Drives
Sigma-5 MINI Series
New super compact, super low capacity models
The Sigma-5 Series lineup introduces the new super compact AC servomotor SGMMV (with models ranging from 3.3 W to 30 W) and the corresponding DC power input SGDV SERVO-PACKs. These products use limited space effectively and help reduce device footprints.
As small, high performance servo drives that can be powered by batteries, they can be used in clean room robots, automated guided vehicles (AGV) and other battery driven transportation systems. They also comply with various standards (including CE Marking, UL and RoHS Directive) for use in European, North American and Asian nations.
Best in Class Servo Drives
The Sigma-5 servo system fits in motion applications demanding ultra small motors, high accuracy, fast positioning and perfect multiaxessynchronisation.
Highest performance for maximum efficiency:
Semicon production devices, PCB assembly equipment, SMT placement systems, Wafer processing systems, Feeder systems, Clean room robots, Liquid crystal production devices, Chip mounter, electronic component production devices, Micro Robots, Assembly devices, Inspection devices, measuring devices, Clean systems, Automated guidance vehicles (AGV), Biomedical devices, Printing systems, Packaging machines, Erosion machines, Welding equipment, Looms (Textile), Metal working machines, Bonders, probers, IC handlers, chip sorters, OHT, Dispensers, scribers, electrode TAB bondings, inspection devices Mounters, inserters, solder printers, Winding machines, spring makers, X-Y robots, assembly robots, Screwing devices
Servopack

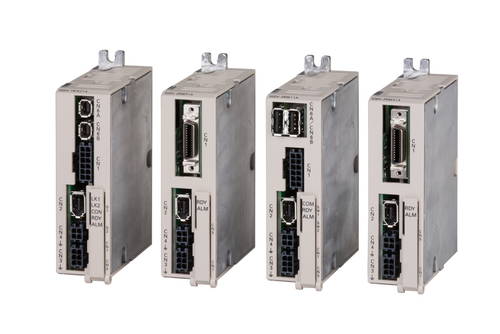

SGDV SERVOPACK with DC Power Input
Smart and minimized in size - the SERVOPACK is smaller than the palm of your hand
Efficient use of limited space, reduces the footprint of control panels and devices. The small, high performance servos can be powered by batteries to upgrade clean room robots, automated guided vehicles (AGV) and other battery driven transportation systems. These SERVOPACK products retain the control performance and easy handling of the Sigma-5 Series while adding new advanced autotuning, which allows users to quickly make optimal adjustments of their servo drives.
- Compact design 30 mm W × 100 mm H (116 mm with attachment) × 80 mm D
- Supports DC power input
- As the control power is separated from the main circuit power supply, the main circuit power supply can be separately shut down when there is an alarm, and troubleshooting can be easily performed.
- High performance and easy use with the latest technology
Motors

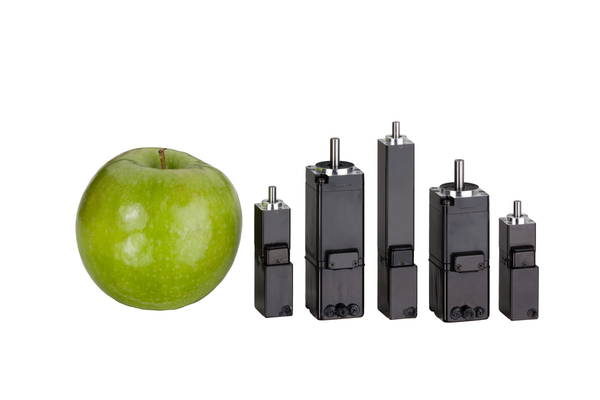

SGMMV Servomotor
Highest dynamics and precision for applications with compact dimensions
High dynamics and precision in smallest dimensions, has always been a demand in mechanical engineering. YASAKAWA provides ultra compact servo motors, the Sigma-5 Mini series. With a flange diameter comparable to a one cent coin, it allows a variety of new applications with servo motors. Sigma-5 Mini motors offer highest performance with minimal size for maximum efficiency.
- Extensive lineup of super compact, super small capacity products
- Two flange sizes (15 mm and 25 mm) available
- 24 VDC and 48 VDC inputs, plus 200 VAC input and brake for the 25 mm version
- This extensive lineup meets customer applications and requirements in detail
- High resolution 17-bit (131,072 pulses/revolution) absolute value serial encoder for high-precision positioning
- SERVOPACK parameter settings also enable use as an incremental type Maximum speed 6000 rpm
- High speed (rated speed 3000 rpm and maximum speed 6000 rpm) improves device takt time
