Linear Sistemler ve Motorlar

Slider

Linear Slider Serisi

Linear Slider SGT-F
Rated Force: 80 - 1,120 N
Peak Force: 220 - 2,400 N

İncele

SGTMF (Sigma-Trac-MAG)
Rated Force: 90 - 200 N
Peak Force: 270 - 720 N

İncele

SGTMM (Sigma-Trac-μ)
Rated Force: 3.5 - 7 N
Peak Force: 10 - 25 N

İncele

Pick & Place

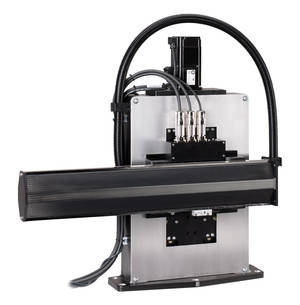

Pick & Place System

Pick & Place System compact and optimized for maximum performance bef031e71a

Particularly well-suited for use in Construction and Process automation

System Concept

Ready to install (Plug & Play) with optional servo-controller and control system upon request
Low Maintenance, High Reliability
Cleanroom Ready
Consistent process quality
Short cycle times
Outstanding cost performance ratio
Active vibration suppression enables faster positioning

Performance data

Positioning accuracy 0.01 mm
Repeatability 0.002 mm
Max. velocity 4.0 m/s
Max. acceleration 4 g

Gantry

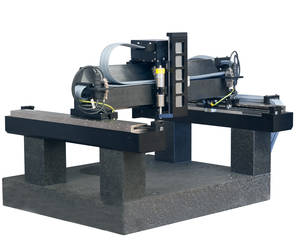

Gantly System

Gantry System with a range of options for individually tailored customer specifi c solutions gantly-system

Particularly well-suited for use in Assembly and Process automation

System Concept

Configurable gantry structure layout allowing for optimised use of the working area to meet process requirements
Ready to install (Plug & Play) with optional servo and controller systems solutions
Low-Maintenance, High Reliability Cleanroom Ready
Z-axis can be rotary or linear
Active vibration suppression enables faster positioning

Performance data

Positioning accuracy 0.02 mm
Repeatability 0.003 mm
Max. velocity 4.0 m/s
Max. acceleration 4 g

Beam

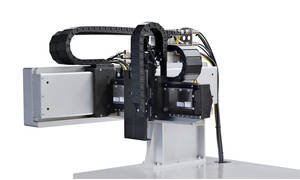

Beam System

Beam System for use in a wide range of working spaces beam-system

Particularly well-suited for use in Assembly and Process automation

System Concept

Flexible: 72 System variations are possible
Ready to install (plug & play) with optional servo and control system upon request
Low Maintenance, High Availability X-Y Table
Cleanroom Ready
Z-axis can be rotary or linear
Active vibration suppression enables faster positioning

Performance data

Positioning accuracy 0.01 mm
Repeatability 0.002 mm
Max. velocity 4.0 m/s
Max. acceleration 4 g

Motors

Linear Motorlar

Linear Motor Series SGLFW
(With F-type Iron Core)
Rated Force: 25 - 2,250 N
Peak Force: 86 - 5,400 N
Peak Speed: 2,3 - 5 m/s

İncele

Linear Motor Series SGLGW
(Coreless Type, With standard and high-force magnetic ways)

Rated Force: 12.5 - 750 N (standard), 57 - 255 N (high)
Peak Force: 40.0 - 3,000 N (standard), 230 - 1,080 N (high)
Peak Speed: 4 - 5 m/s (standard), 4.2 m/s (high)

İncele

Linear Motor Series SGLTW
(With T-type Iron Core)

Rated Force: 130 - 2,000 N
Peak Force: 380 - 7,500 N
Peak Speed: 2,5 - 5 m/s

İncele
